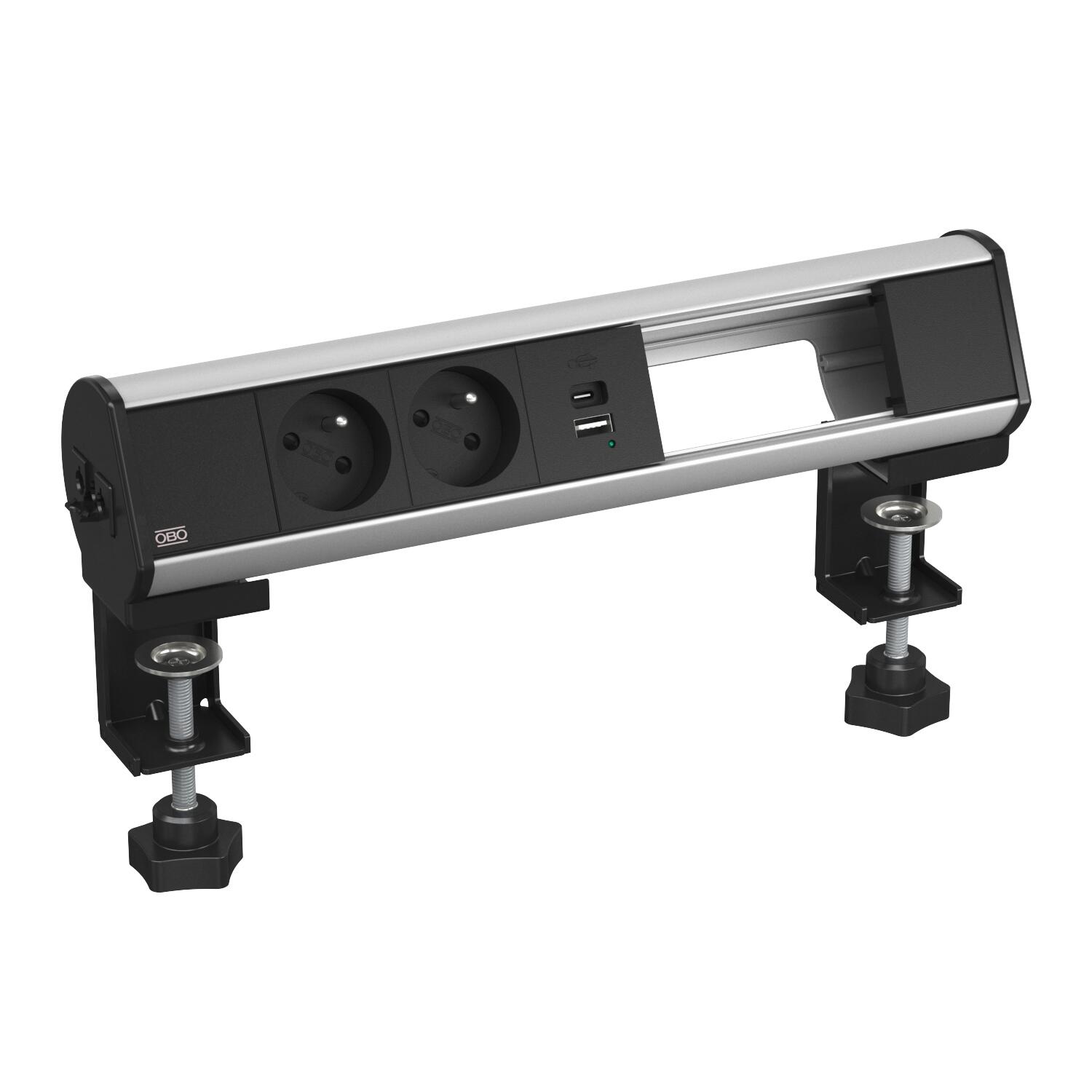

Deskbox with fastening clamp, 2 protective contact sockets, USB Charger
Brt. art. 6116772 | EAN 4012197333300
- Opis proizvoda
-
Opis proizvodaReady-for-connection Deskbox DBL for the direct supply of workstations with power, communications and data technology connections. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is equipped with 2 black NF sockets and a 18W USB A+C USB Charger. In addition, the Deskbox has space for retroinstallation of 4 communications and data technology Keystone modules.
-
- Tehnički podaci
-
Tehnički podaci

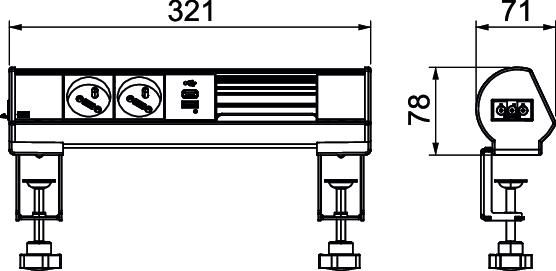

Boja srebrna CO2 otisak (GWP) od kolijevke do vrata 11,93 kg CO2e / 1 Komad Dimenzija 325x71x78 Duljina 145 mm Materijal Aluminij Površina eloksiran Preklopivo ne Razvlačiv ne Visina 59 mm - Svi tipovi
- Preuzimanja
-
Podatkovni list DBL-1B F2S 1C / 6116772 , 0.17MB , pdfKatalog Ugradni sustavi , 28.45MB , pdfREACH Izjava o sukladnosti DBL-1B F2S 1C / 6116772 , 0.13MB , pdfRoHS Izjava o sukladnosti DBL-1B F2S 1C / 6116772 , 0.13MB , pdfUpute za montažu Sicherheitshinweise , 0.43MB , pdfUpute za montažu Deskbox DBL with sockets , 0.56MB , pdf
